描述
Nicko’s 3 Function planetary mixer 20L
1.Nicko’s 3 Function planetary mixer 20L Feature:
1)The planetary mixer using the latest technology. Not only has the sleek design, and the machine internal gear used car engine gear design (material processing) are durable, lube oil imports advanced, the head of internal anti-oil plate design with a unique (patent design), enabling the operation of machinery nose inside each gear can be fully lubricate the gears longer life.
2)The planetary mixer with super Motor, Taiwan technology, horsepower, with three different accessories to provide you with a full range of mixing function, whether it is whipped cream, hummus, mashed potatoes, egg, and so on. You can save time and energy in the most successfully completed.
2.The usage of mixer and advantage:
Hook: For mixing bread, dough, pizza, ect. Hook with a spiral design, the machine running continuously on the dough, flip squeeze under. Make the dough toughness, fully excavated, making pasta and flexible, and good taste.
Ball: For processing cream, cakes, salads, egg. Sphere steel imported 304 stainless steel wire, with good rigidity and toughness. Mixing fast, small and rich bubbles, the amount of bubbles to pass more delicate egg. After the finished cake of the mouth soft, good stiffness, moisture resistance, is the most suitable raw material stirring cake embryo.
Bat: For the sauce, stuffing, candy. Stir article has stirred, without destroying the original flavor of food functions, saving time and effort.
Other ancillary products：
 |  |  |
3 Function Planetary mixer Parameter
| Mode | NKB-10L | NKB-20L | NKB-30L | NKB-40L | NKB-50L | NKB-60L | NKB-80L |
| Capacity | 10L | 20L | 30L | 40L | 50L | 60L | 80L |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V(3Ph) | 220V/380V(3Ph) | 220V/380V(3Ph) |
| Power | 0.25KW | 0.38KW | 0.75KW | 1.13KW | 1.5KW | 2.25KW | 3.75KW |
| Mixing speed | 156/340/530 r/min | 131/288/518 r/min | 120/240/468 r/min | 120/240/468 r/min | 105/237/407 r/min | 144/248/403 r/min | 144/248/403 r/min |
| Hook for dough | 0.75Kg | 1.8Kg | 3.7Kg | 5.6Kg | 7.5Kg | 11Kg | 14Kg |
| Ball for egg | 1.5Kg | 3Kg | 4.5Kg | 6Kg | 8Kg | 10Kg | 13Kg |
| Bat for fillings | 1.5Kg | 3Kg | 4.5Kg | 6Kg | 8Kg | 10Kg | 13Kg |
| Net. Weight | 57kg | 83kg | 150kg | 162kg | 217kg | 430kg | 450kg |
| Machine Size(mm) | 430*440*670 | 520*530*830 | 620*620*1020 | 62*64*1070 | 680*680*1180 | 660*840*1350 | 670*880*1450 |
4. How to using the agitator
| Products suitable for planetarymixer | Agitator Suitable for operation | ||
| Wire Whip(third speed) | Flat Beate(second speed) | Dough Hook(first speed) | |
| Meringue | √ | ||
| Egg Whites | √ | ||
| Whipped Cream | √ | ||
| Mayonnaise | √ | ||
| Waffle or Hot cake | √ | √ | |
| Cake Cup | √ | √ | |
| Cake layer | √ | √ | |
| Cake Short(Sponge) | √ | √ | |
| Cookies Suger | √ | ||
| Mashed Potatoes | √ | ||
| Dough thin Pizza 40%AR | √ | ||
| Dough Med Pizza 50% | √ | ||
| Dough Heavy Bread 55% | √ | ||
| Dough Whole Wheat 70% | √ | ||
| Dough Raised Dounut 65% | √ | ||
| Dough Thick Pizza 60% | √ | ||
5. Product illustration

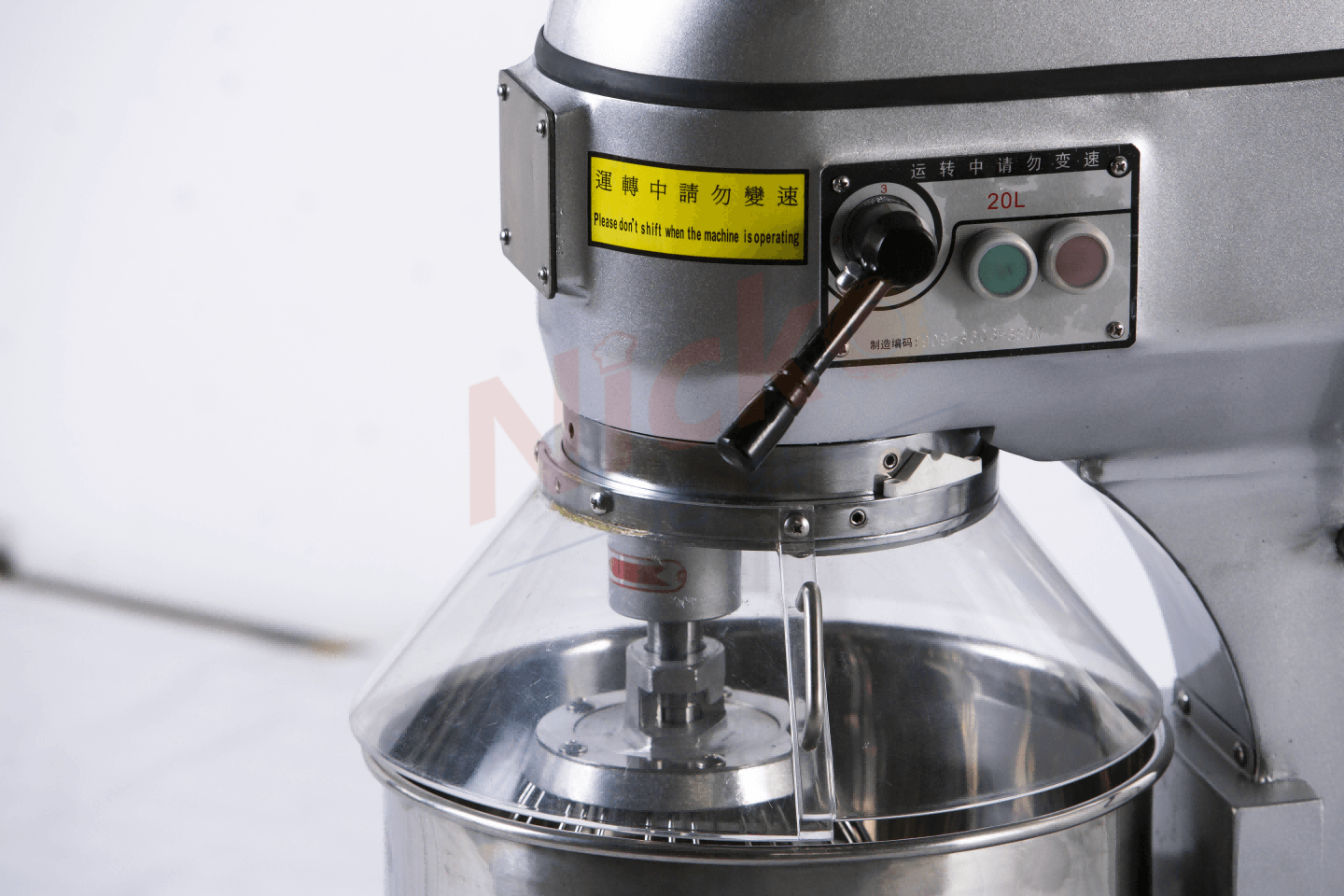

6.Product details display
| NO. | Name of the spare parts | NO. | Name of the spare parts |
| 1 | Cover | 21 | Annular gear |
| 2 | Belt | 22 | Torticollis gear wheel |
| 3 | Nose | 23 | Torticollis axis |
| 4 | Gear Change hand lever | 24 | Rocker |
| 5 | Torticollis | 25 | Small bird head |
| 6 | Bull angle | 26 | Pull rod |
| 7 | Pedestal | 27 | Pull rod spring |
| 8 | Switch | 28 | Guide way sizing |
| 9 | White iron ring | 29 | Shifting fork |
| 10 | Stand pillar | 30 | Tricolpate axis |
| 11 | Big belt wheel | 31 | Gear change |
| 12 | Motor belt wheel | 32 | Beater |
| 13 | Gear wheel cover | 33 | Hook |
| 14 | Motor | 34 | Whip |
| 15 | Triad gear | 35 | B axis thimble |
| 16 | Main axis | 36 | Bowl |
| 17 | B axis big gear wheel | 37 | Shield |
| 18 | B axis small gear wheel | 38 | On-off switch |
| 19 | B axis | 39 | Emergency switch |
| 20 | A axis | 40 | Limit switch |
